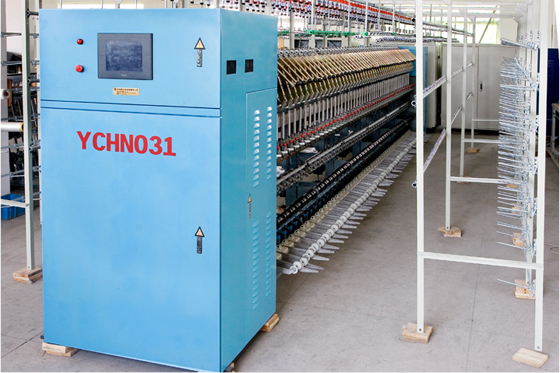

三罗拉短纤花捻机YCHN031
产品用途及特点
该机适用于多种纤维（长度38～102mm）为原料的纱线或毛纺、棉纺、中长粗纱，生产常规型、超喂型、控制型花式纱线如平行纱、波形纱、圈圈纱、结子纱、竹节纱、辫子纱、包缠纱，也可纺制各种复合型纱。
使用先进的高速空心锭子，振幅小、承载力大、调节方便。
采用一步法成形，应用“空心锭子”加捻原理，络筒式的卷取装置，集纺纱、捻线、成形于一体，生产效率高。
双面车配有筒子纱架和粗纱架，芯纱积极喂入，张力可调，消除了张力不均现象。
车头传动由同步齿形带及齿轮组成，传动精度高，同步性好。
前罗拉、空心锭子下方均配有吸风管，将断头及废纱吸入，车尾风机集中吸尘、排出。
卷绕筒子架结构合理，成纱卷装大，并有扭簧调节成纱松紧程度。
牵伸系统采用三罗拉摇架，前、后罗拉、卷绕罗拉以及空心锭子传动均由独立变频调速电机拖动，速度任意变化，无级可调。
电气控制，方便可靠，前、后罗拉，卷绕罗拉以及空心锭子转速直接面板显示，工艺调速十分方便、简单。
YCHN031 Pattern 3-roller(Short Fibre) Yarn Twister
Utilization and Performance of the Product
Suitable for yarns of various fibers (length 38～102mm) or for roving of wool, cotton and medium length, this machine turns out pattern yarns of ordinary type, over-fed type and controlled type, such as parallel yarn , wave yarn, loopy yarn, knotted yarn, plait yarn and wrapped yarn, or turns out various compound yarns.
High-speed hollow spindles are used with slight vibration, high bearing capacity and easy regulation.
One-step forming is adopted. “Hollow spindle” twisting principle and cheese-like winding are used, combining spinning, twisting and finishing into one with the result of high production efficiency.
The double side frame is incorporated with cheese support and roving support. The yarn core is actively fed in with adjustable tension.
The transmission at the frame head is composed of synchronous toothed bar and gear, with precise transmission and superb synchronism.
Below the front rollers and hollow spindles there is suction pipe, which takes in broken ends and waste. Dusting and exhausting are effected by fan at the frame tail.
The winding drum support is reasonable in structure, with huge capacity for finished yarn and with torsion springs to adjust its tension.
The drafting system adopts 3-roller cradle. The front roller, rear roller, winding roller and hollow spindle are all driven by separate frequency-changing speed-regulation motors. The speed is stepless adjustable.
The machine features easy and reliable electric control. The speed of the front roller, rear roller , winding roller and hollow spindle is directly shown on the panel so that technological regulation is very easy and simple.
YCHN031型三罗拉(短纤)花式捻线机
YCHN031 Pattern 3-roller(Short Fibre) Yarn Twister
|
主要技术参数 |
Technical Details |
|
锭数 |
102锭 |
Number of Spindles |
102 |
|
锭距 |
140mm |
Gauge |
140mm |
|
适纺支数 |
1～30公制支数 |
Suitable count |
1--30Nm |
|
牵伸形式 |
三罗拉、双皮圈、摇架加压 |
Draft |
3-roller,double-apron,pressured cradle |
|
适纺纤维长度 |
38～102mm（包括滑溜牵伸） |
Suitable fiber length |
38～102mm(including sliding draft) |
|
空心锭转速 |
最高18000r/min 无级调速 |
Speed of hollow spindle |
Max18000r/min stepless adjustable |
|
纺纱速度 |
10～30m/min 无级调速 |
Spindle speed |
10--30m/min stepless adjustable |
|
捻向 |
Z或S（由操作面板设定） |
Twist direction |
Z or S twist |
|
罗拉直径 |
前后Φ30mm，中Φ25mm |
Roller diameter |
Front & rear roller:?30mm intermediate:?25mm |
|
适纺粗纱纱支 |
0.35～2.5g/m |
Suitable count |
0.35～2.5g/m |
|
牵伸倍数 |
前区无级可调，后区1.0；1.1；1.2；1.3；1.4；1.5倍 |
Draft ratio |
Front: stepless adjustable, Rear:1.0；1.1；1.2；1.3；1.4；1.5 |
|
装机功率 |
7.2kW |
Power |
7.2kW |
|
外形尺寸 |
长9170×宽3500（含纱架）×高2400mm |
Overall dimensions |
L9170*W3500(including yarn support) *H2400mm | |
|
| |
|
|
